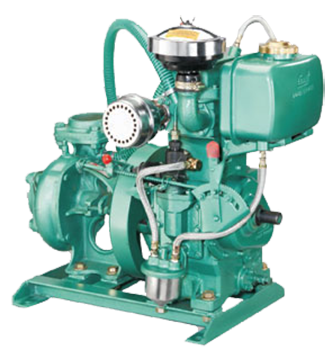

3.5 HP Water Cooled (CUB 3.5W)
Specifications
light weight, easy portability, Optimal Fuel efficiency, Low maintenance costApplication
Pumpsets, Aquaculture, Firepumps, High pressure washers| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Water |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 3.5 / 2.6 |
| 4 | Bore (mm) | 80.0 |
| 5 | Stroke (mm) | 62.0 |
| 6 | Rated R. P. M. | 2050 |
| 7 | Swept Volume (CC) | 311 |
| 8 | Compression Ratio | 17.5:1 |
| 9 | Bearing Type | TRB |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel |
| 12 | Governor Type / Class | Centrifugal / B1 Class |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 4.0 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 28° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 294 |
| Bosch Pump F 002 F 30 001 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 199 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 270 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.2 |
| 20 | Bumping Clearance (mm) | 1.00 - 1.10 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.20 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.25 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 1.000 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Temp 5° C & Below - SAE 10 |
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 140 |
| 30 | Foundation Bolt Spacing (mm) | 225 x 104 |
| 31 | Engine Net Weight (kg) | 54 |
| 32 | Engine Gross Weight (kg) | 70 |
| 33 | Overall Dimensions (L x W x H) | 313 x 400 x 570 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 520 x 520 x 635 |
| 35 | Pump Size (mm) | 80 x 65 |
| 36 | Head Range (mts.) | 9.6 to 13.2 |
| 37 | Duty Point | |
| Head (mts.) | 12.0 | |
| Discharge (lps) | 9.0 | |
| 38 | Efficiency (%) | 66.0 |
| 39 | Pump Set Net Weight (kg) | 82.0 |
| 40 | Pump Set Gross Weight (kg) | 98.0 |
| 41 | Overall Packing Dimensions (L x W x H) (mm) | 711 x 483 x 711 |
5.0 HP Water Cooled (CUB 5WC)
Specifications
light weight, easy portability, Optimal Fuel efficiency, Low maintenance costApplication
Aquaculture, Firepumps, High pressure washers| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Water |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 5.0 / 3.7 |
| 4 | Bore (mm) | 80.0 |
| 5 | Stroke (mm) | 62.0 |
| 6 | Rated R. P. M. | 2600 |
| 7 | Swept Volume (CC) | 311 |
| 8 | Compression Ratio | 17.5:1 |
| 9 | Bearing Type | TRB |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel |
| 12 | Governor Type / Class | Centrifugal / B1 Class |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 4.0 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 33° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump F 002 F 30 001 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 199 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 270 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.2 |
| 20 | Bumping Clearance (mm) | 1.00 - 1.10 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.20 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.25 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 1.000 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Temp 5° C & Below - SAE 10 |
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 140 |
| 30 | Foundation Bolt Spacing (mm) | 225 x 104 |
| 31 | Engine Net Weight (kg) | 55 |
| 1 | Pump Size (mm) | 80 x 65 |
| 2 | Head Range (mts.) | 17.6 to 24.5 |
| 3 | Duty Point | |
| Head (mts.) | 22.0 | |
| Discharge (lps) | 10.0 | |
| 4 | Efficiency (%) | 65.0 |
| 5 | Pump Weight (kg) | 18.2 |
| 6 | Pump Set Net Weight (kg) | 82.0 |
| 7 | Pump Set Gross Weight (kg) | 98.0 |
| 8 | Overall Packing Dimensions (L x W x H) (mm) | 711 x 483 x 648 |
| 1 | Pump Size (mm) | 80 x 80 |
| 2 | Head Range (mts.) | 12.8 to 17.6 |
| 3 | Duty Point | |
| Head (mts.) | 16.0 | |
| Discharge (lps) | 14.0 | |
| 4 | Efficiency (%) | 60.0 |
| 5 | Pump Weight (kg) | 19.0 |
| 6 | Pump Set Net Weight (kg) | 83.0 |
| 7 | Pump Set Gross Weight (kg) | 99.0 |
| 8 | Overall Packing Dimensions (L x W x H) (mm) | 711 x 483 x 648 |
| 1 | Pump Size (mm) | 100 x 100 |
| 2 | Head Range (mts.) | 10.4 to 14.3 |
| 3 | Duty Point | |
| Head (mts.) | 13.0 | |
| Discharge (lps) | 17.0 | |
| 4 | Efficiency (%) | 72.0 |
| 5 | Pump Weight (kg) | 20.5 |
| 6 | Pump Set Net Weight (kg) | 84.0 |
| 7 | Pump Set Gross Weight (kg) | 100.0 |
| 8 | Overall Packing Dimensions (L x W x H) (mm) | 711 x 483 x 648 |
